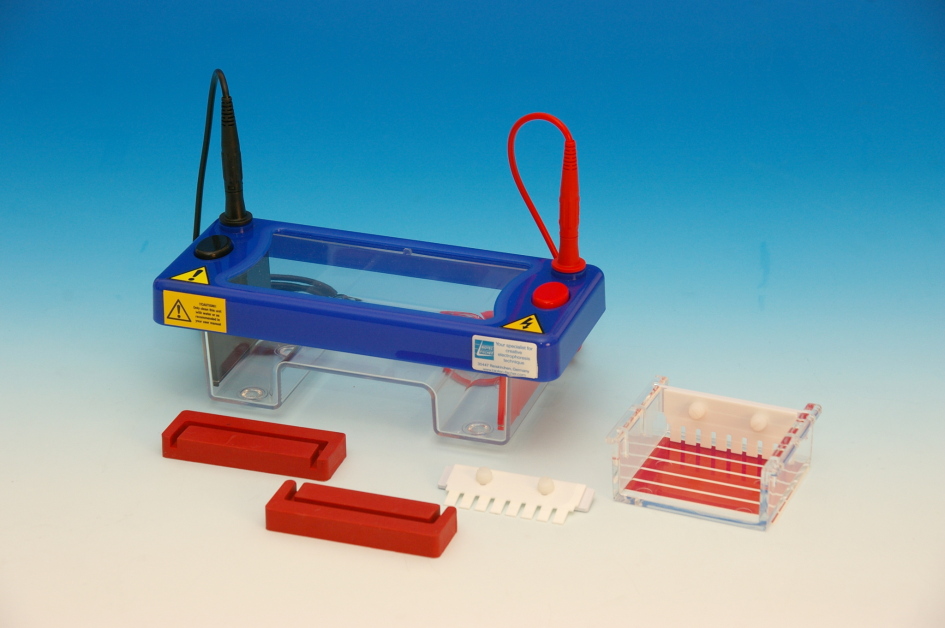

PHERO-sub 0710-E


PHERO-sub 0710-E is the smallest unit in the range, designed for low to medium numbers of samples. The small gel size maximises run economy but does not compromise versatility as two tray options are available – 7 x 7cm and 7 x 10cm, and combs ranging from preparative up to 16 samples. Simply by altering the gel tray or comb, this compact unit is capable of resolving up to 64 different samples, prepping 1ml of sample or separating sample bands over a distance of 9cm.

111100-001 PHERO-sub 0710-E

1 x Gel Tray 70 x 70 mm, UV transparent
1 x Casting Dams ( 2 pcs.)
2 x Comb, 8 slots, 1.0 mm
Loading guides, Platform, Cable set

111100-002 PHERO-sub 0710-E

1 x Gel Tray 70 x 100 mm, UV transparent
1 x Casting Dams ( 2 pcs.)
2 x Comb, 8 slots, 1.0 mm
Loading guides, Platform, Cable set

111100-003 PHERO-sub 0710-E

1 x Gel Tray 70 x 70 mm, UV transparent
1 x Gel Tray 70 x 100 mm, UV transparent
1 x Casting Dams ( 2 pcs.)
2 x Comb, 8 slots, 1.0 mm
Loading guides, Platform, Cable set

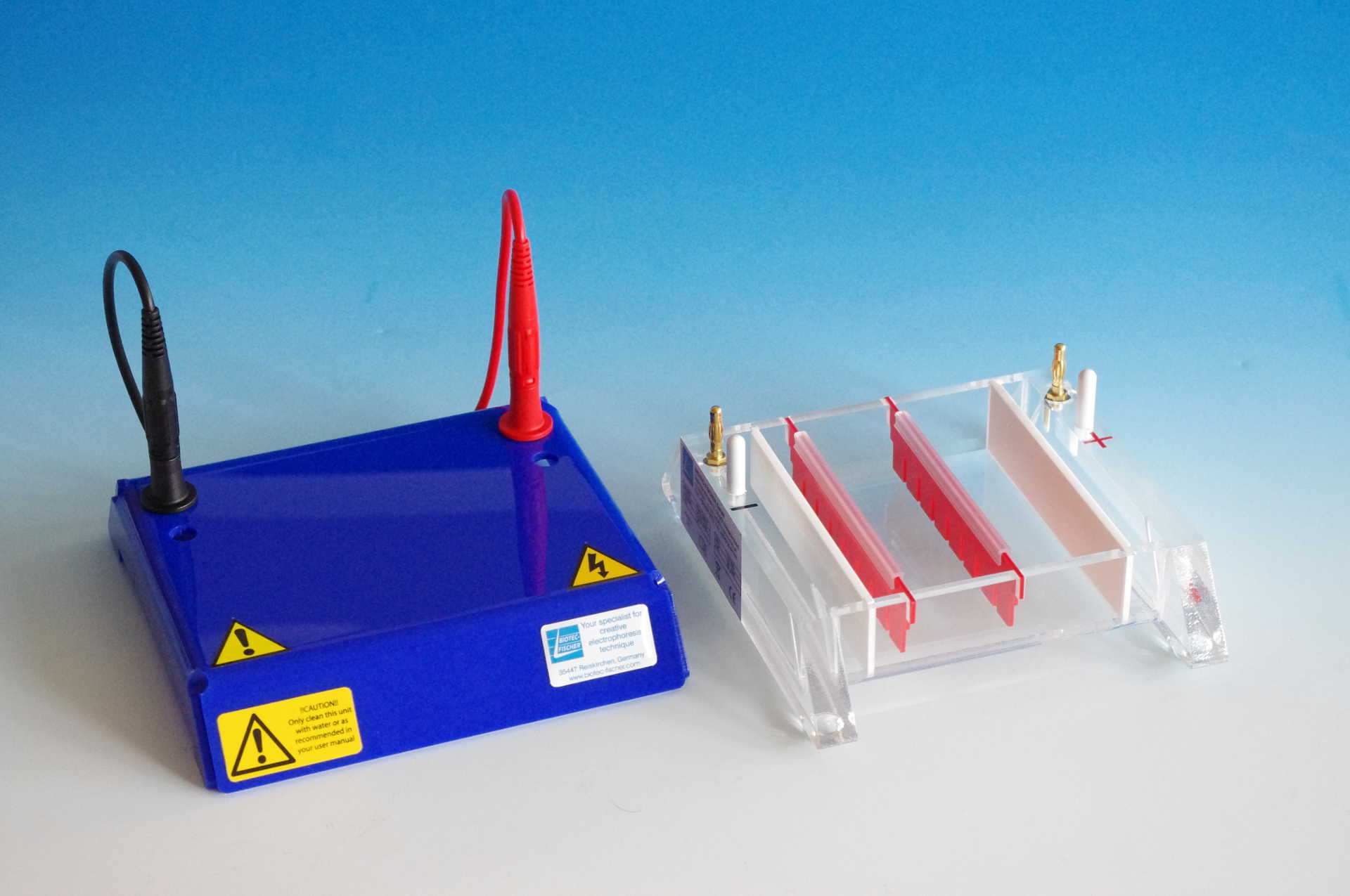

PHERO-sub 1008-E


The PHERO-sub 1008-E is a completely self contained system designed for quick checks of samples. Gel casting, running and analysis are all performed in the same ultra compact unit. Buffer and gel volumes have been kept to a minimum and the parallel electrode arrangement allows ultra efficient current transfer, enabling resolution to be completed within 30 minutes. The UV transparent base allows direct viewing on a UV Transilluminator with no need for time consuming transfer and potential gel damage. Dual comb slots allow
the loading of up to 40 samples per gel while multichannel pipette compatible combs further enhance the speed and convenience.

111200-001 PHERO-sub 1008-E

1 x Gel Tray 100 x 80 mm, UV transparent
1 x Casting Dams ( 2 pcs.)
2 x Comb, 8 slots, 1.5 mm
Cable set

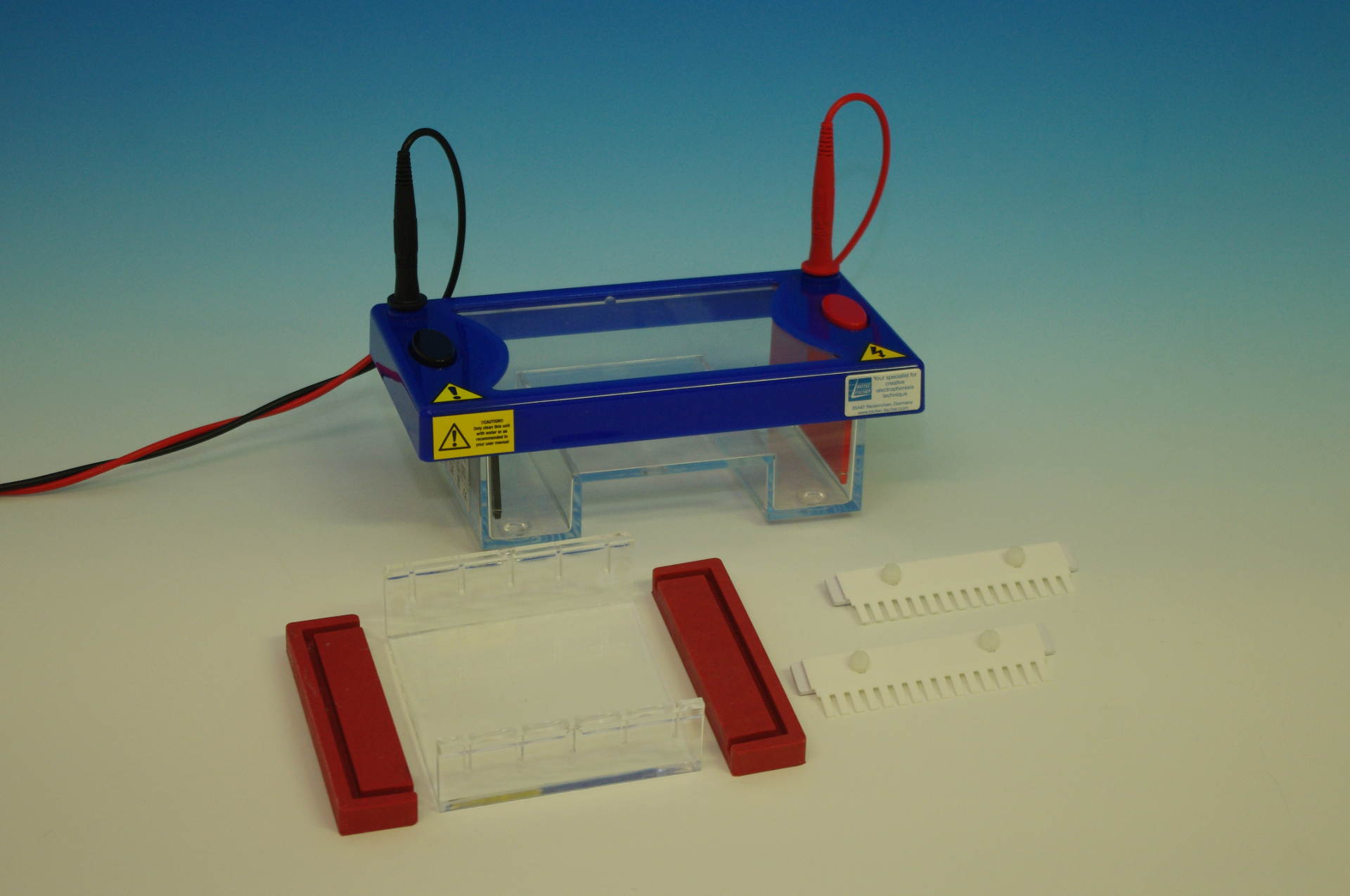

PHERO-sub 1010-E


With gel tray options of 10 x 7cm and 10 x 10cm, the multiSUB Midi has been designed for routine horizontal gel electrophoresis. Extending only the width of this unit allows more samples to be resolved per gel than the PHERO-sub 1010-E without a significant increase in buffer or gel volumes. A maximum of 100 samples per gel can be resolved making this unit ideal for those routinely checking medium numbers of samples over short to medium gel run lengths.

111300-001 PHERO-sub 1010-E

1 x Gel Tray 100 x 70 mm, UV transparent
1 x Casting Dams ( 2 pcs.)
2 x Comb, 16 slots, 1.0 mm
Loading guides, Platform, Cable set

111300-002 PHERO-sub 1010-E

1 x Gel Tray 100 x 100 mm, UV transparent
1 x Casting Dams ( 2 pcs.)
2 x Comb, 16 slots, 1.0 mm
Loading guides, Platform, Cable set

111300-003 PHERO-sub 1010-E

1 x Gel Tray 100 x 70 mm, UV transparent
1 x Gel Tray 100 x 100 mm, UV transparent
1 x Casting Dams ( 2 pcs.)
2 x Comb, 16 slots, 1.0 mm
Loading guides, Platform, Cable set

PHERO-sub 1515-E


The PHERO-sub 1515-E offers a wide degree of versatility. Three tray options are available – 15 x 7cm, 15 x 10cm and 15 x 15cm – allowing the choice of one, two or all three gel length options at the time of purchase. Further purchases of additional accessories are no longer required. Maximising comb and tray options allow up to 210 samples to be resolved per gel. The 15cm total run length allows restriction fragment or other close MW sample bands to be easily separated and identified. Speed loading is accomplished using 10, 14, 16, 18, 28 and 30 sample multi-channel pipette compatible combs.

111400-001 PHERO-sub 1515-E

1 x Gel Tray 150 x 70 mm, UV transparent
1 x Casting Dams ( 2 pcs.)
2 x Comb, 20 slots, 1.0 mm
Cable set

111400-002 PHERO-sub 1515-E

1 x Gel Tray 150 x 100 mm, UV transpar.
1 x Casting Dams ( 2 pcs.)
2 x Comb, 20 slots, 1.0 mm
Cable set

111400-001 PHERO-sub 1515-E

1 x Gel Tray 150 x 150 mm, UV transpar.
1 x Casting Dams ( 2 pcs.)
2 x Comb, 20 slots, 1.0 mm
Cable set

111400-004 PHERO-sub 1515-E

1 x Gel Tray 150 x 70 mm, UV transpar.
1 x Gel Tray 150 x 100 mm, UV transpar.
1 x Gel Tray 150 x 150 mm, UV transpar.
1 x Casting Dams ( 2 pcs.)
2 x Comb, 20 slots, 1.0 mm
Cable set

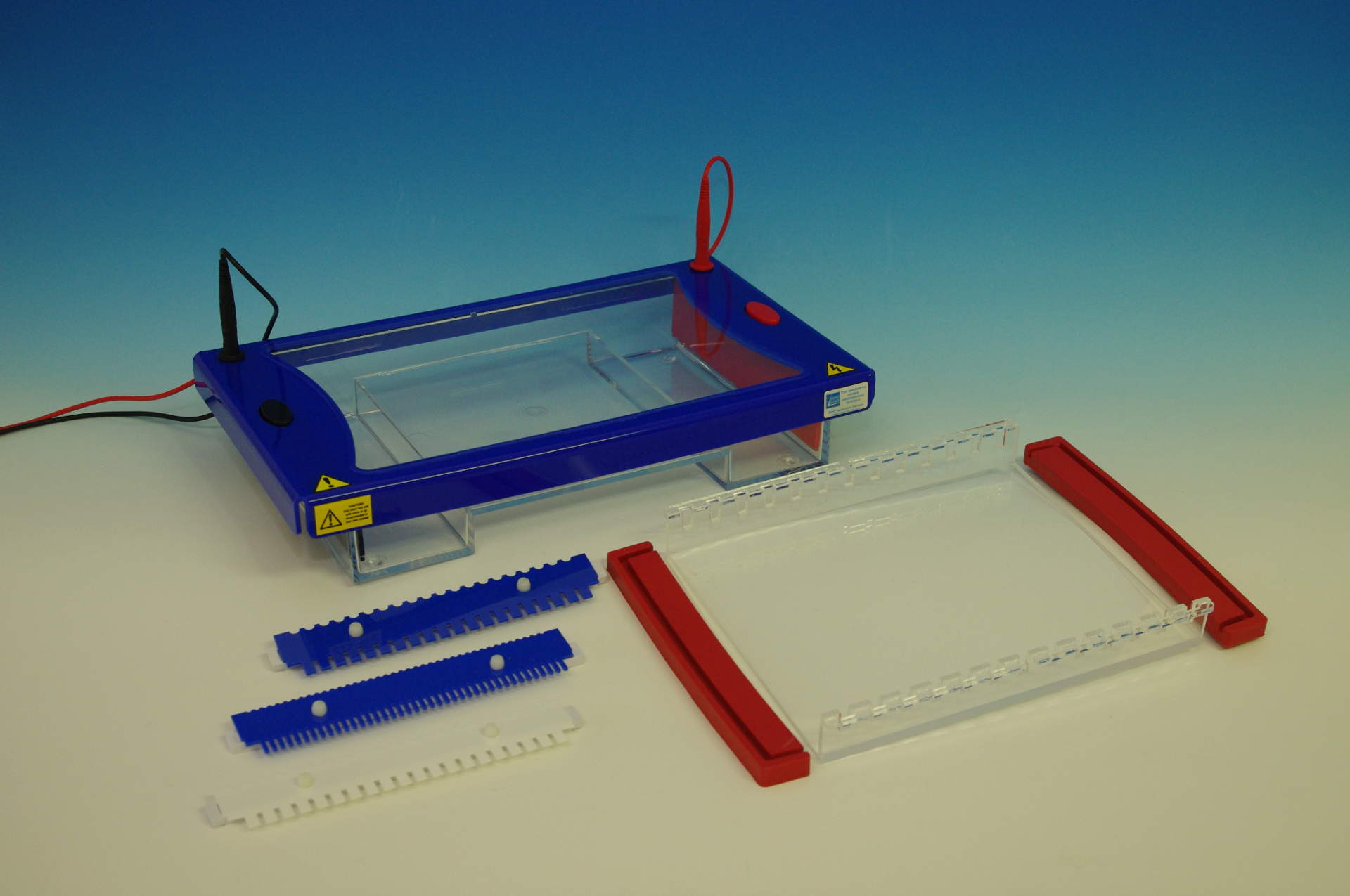

PHERO-sub 2020-E


The PHERO-sub 2020-E primarily designed for resolution of high numbers of samples such as from Cloning or PCR. The PHERO-sub 2020-E allows ultra high-resolution separations over extended runs. Tray sizes correspond to standard blotter sizes. It also allows easy sample transfer onto a membrane for further analysis. Three tray sizes are available – 20 x 20cm, 20 x 25cm and a half-length 20 x 10cm. Multichannel pipette compatible combs up to 40 sample facilitate speed loading of up to 440 samples per gel. 50 sample combs allow maximum sample capacity of 550 samples per gel.

111500-001 PHERO-sub 2020-E

1 x Gel Tray 200 x 100 mm, UV transpar.
1 x Casting Dams ( 2 pcs.)
2 x Comb, 20 slots, 1.0 mm
Loading guides, Platform, Cable set

111500-002 PHERO-sub 1010-E

1 x Gel Tray 200 x 200 mm, UV transpar.
1 x Casting Dams ( 2 pcs.)
2 x Comb, 20 slots, 1.0 mm
Loading guides, Platform, Cable set

111500-003 PHERO-sub 1010-E

1 x Gel Tray 200 x 100 mm, UV transpar.
1 x Gel Tray 200 x 200 mm, UV transpar.
1 x Casting Dams ( 2 pcs.)
2 x Comb, 20 slots, 1.0 mm
Loading guides, Platform, Cable set

111500-004 PHERO-sub 2020-E

1 x Gel Tray 200 x 250 mm, UV transpar.
1 x Casting Dams ( 2 pcs.)
2 x Comb, 20 slots, 1.0 mm
Loading guides, Platform, Cable set

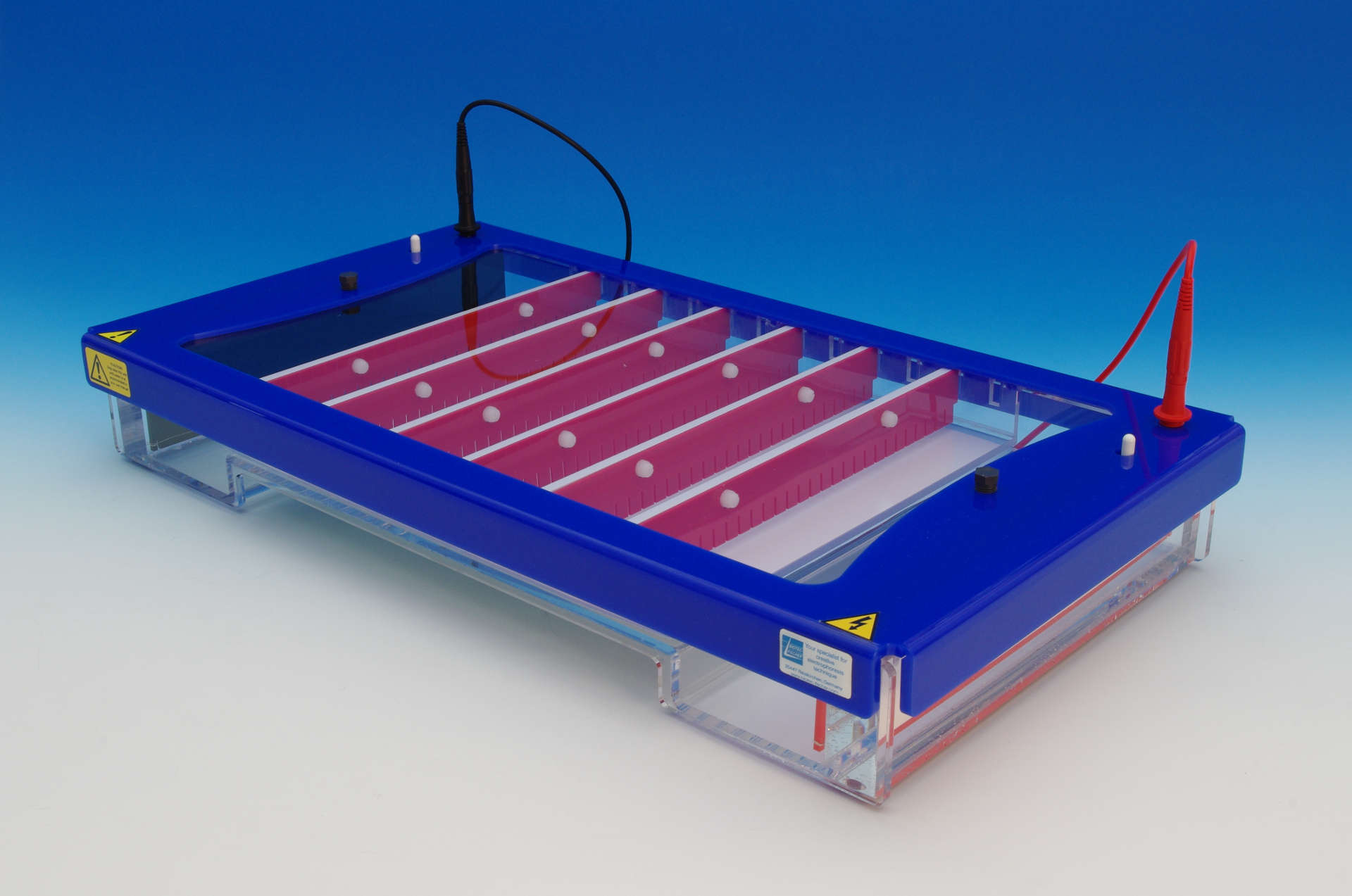

PHERO-sub 2632-E


Designed for rapid screening of very large numbers of Clonal or PCR samples, the PHERO-sub 2632-E horizontal gel unit has a 672 maximum sample capacity per gel. This allows loading and analysis of exactly seven 96 well format micro titre plates. The large gel run length of 32cm also allows resolution of samples over a long distance for separation of complex sample bands such as in restriction fragment analysis. The unit is available with a full length tray or with other tray length options of 16 or 24cm so that the user’s exact requirements can be matched. In addition to options for single length gel trays, PHERO-sub 2632-E is available with all three gel tray lengths to provide the maximum in flexibility, versatility and value. Buffer recirculation ports are included as standard to allow enhanced resolution over extended runs while loading guides enhance well visibility for easy sample loading.

111600-001 PHERO-sub 2632-E

1 x Gel Tray 260 x 160 mm, UV transparent
1 x Casting Dams ( 2 pcs.)
6 x Comb, 28 slots, 1.0 mm
Loading guides, Viewing Platform, Cable set

111600-002 PHERO-sub 2632-E

1 x Gel Tray 260 x 240 mm, UV transparent
1 x Casting Dams ( 2 pcs.)
6 x Comb, 28 slots, 1.0 mm
Loading guides, Viewing Platform, Cable set

111600-003 PHERO-sub 2632-E

1 x Gel Tray 260 x 320 mm, UV transparent
1 x Casting Dams ( 2 pcs.)
6 x Comb, 28 slots, 1.0 mm
Loading guides, Viewing Platform, Cable set

111600-004 PHERO-sub 2632-E

1 x Gel Tray 260 x 160 mm, UV transparent
1 x Gel Tray 260 x 240 mm, UV transparent
1 x Gel Tray 260 x 320 mm, UV transparent
1 x Casting Dams ( 2 pcs.)
6 x Comb, 28 slots, 1.0 mm
Loading guides, Viewing Platform, Cable set

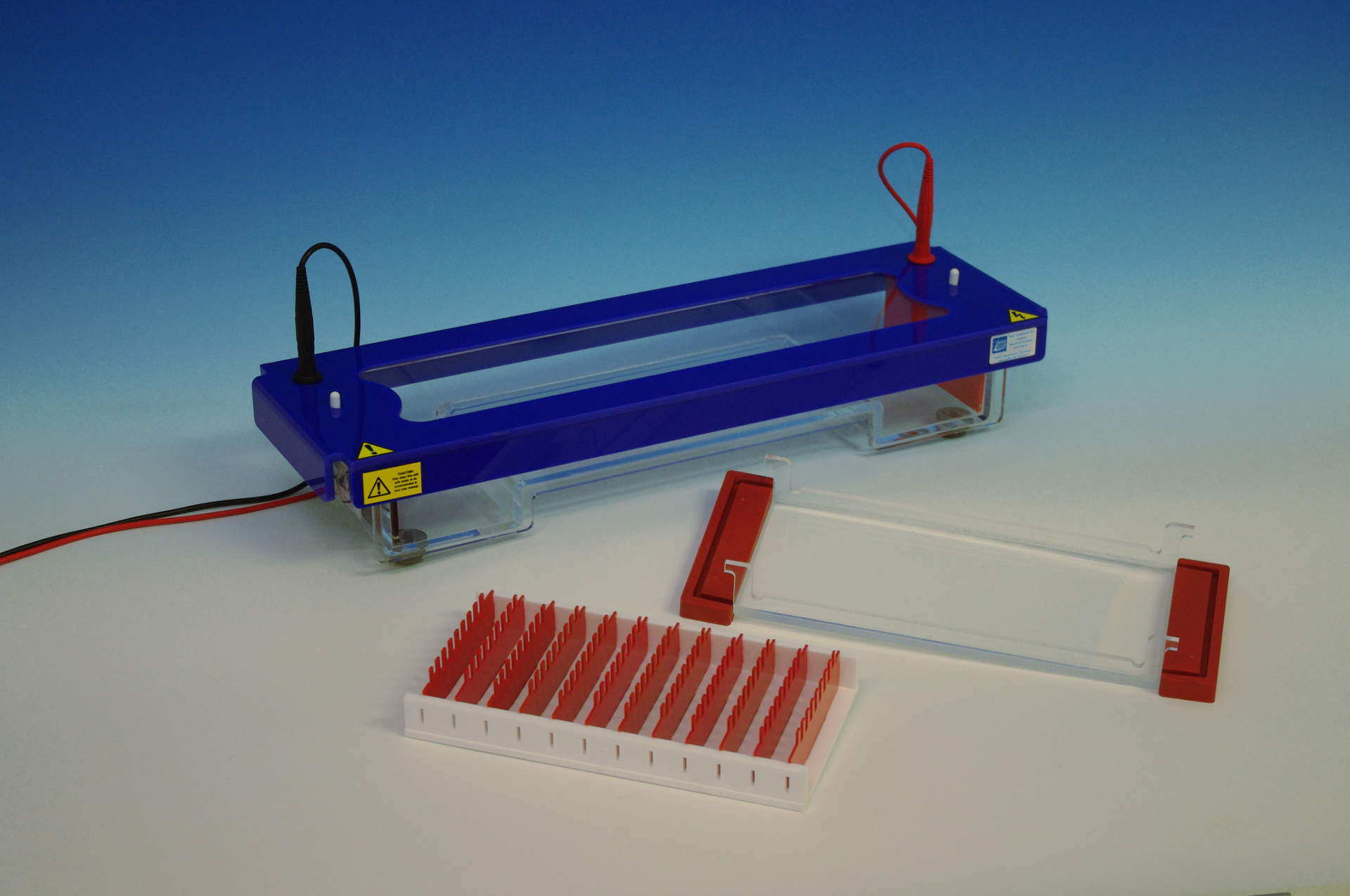

PHERO-sub 96xx-M


The PHERO-sub 96xx-M Gel System is ideal for high throughput electrophoresis of PCR products or samples containing a small number of DNA bands. Its 10x12cm (W x L) gel dimensions and 96-well comb block format correspond to the standard microplate configuration. Two different types of combs are available: one which has 8 wells and an additional lane for DNA markers and one which has 8 wells and 2 additional lanes for markers. The offset layout of the wells allows a maximum run length of 1.8cm per well, resulting in improved separation. PHERO-sub 96xx-M can accommodate samples from a 96-well plate samples can be loaded directly using 8-channel pipettes. As with all PHERO-sub units, leak-proof casting is simplified using the supplied casting dams while their ultra-compact size minimises buffer usage and bench space requirements.

111700-001 PHERO-sub 9600-M018

1 x Gel Tray 100 x 120 mm, UV transparent
1 x Casting aid
1 x Comb, 8 x 12 slots, Multichannel, 1.0 mm
with 1 marker lane

111700-002 PHERO-sub 9615-M018

1 x Gel Tray 100 x 120 mm, UV transparent
1 x Casting aid
1 x Comb, 8 x 12 slots, Multichannel, 1.5 mm
with 1 marker lane

111700-003 PHERO-sub 9600-M218

1 x Gel Tray 100 x 120 mm, UV transparent
1 x Casting aid
1 x Comb, 8 x 12 slots, Multichannel, 1.0 mm
with 2 marker lanes

111700-004 PHERO-sub 9615-M218

1 x Gel Tray 100 x 120 mm, UV transparent
1 x Casting aid
1 x Comb, 8 x 12 slots, Multichannel, 1.5 mm
with 2 marker lanes

111800-001 PHERO-sub 9600-M036

1 x Gel Tray 100 x 240 mm, UV transparent
1 x Casting aid
1 x Comb, 8 x 12 slots, Multichannel, 1.0 mm
with 1 marker lane

111800-002 PHERO-sub 9615-M136

1 x Gel Tray 100 x 240 mm, UV transparent
1 x Casting aid
1 x Comb, 8 x 12 slots, Multichannel, 1.5 mm
with 1 marker lane

111800-003 PHERO-sub 9600-M236

1 x Gel Tray 100 x 240 mm, UV transparent
1 x Casting aid
1 x Comb, 8 x 12 slots, Multichannel, 1.0 mm
with 2 marker lanes

111800-004 PHERO-sub 9615-M236

1 x Gel Tray 100 x 240 mm, UV transparent
1 x Casting aid
1 x Comb, 8 x 12 slots, Multichannel, 1.5 mm
with 2 marker lane

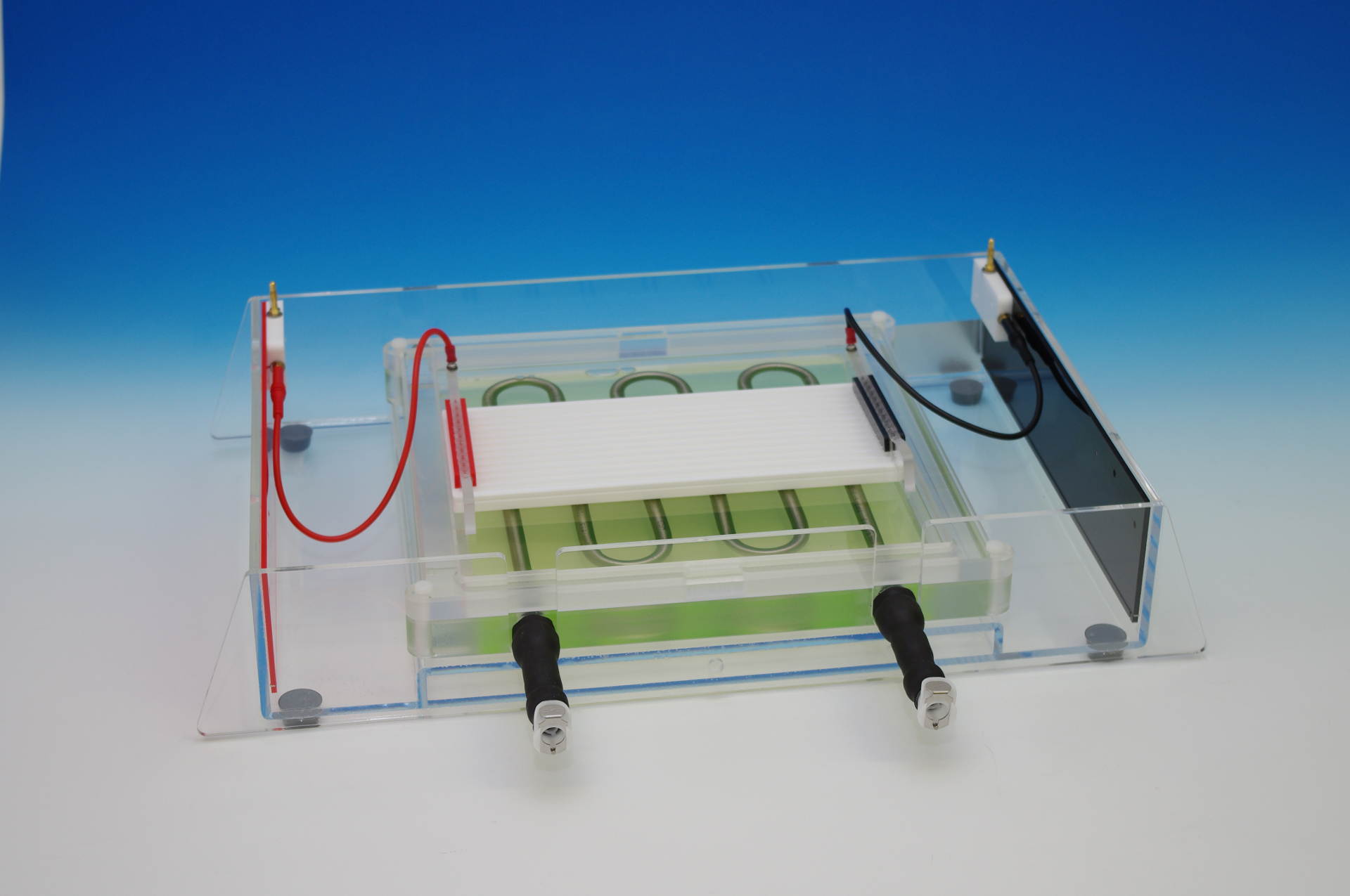

PHERO-iefoc


Now equipped with rehydration and focusing trays, the redesigned PHERO-iefoc has been
optimised to perform first-dimension isoelectric focusing (IEF) with IPG (immobilised pH
gradient) strips quickly, easily and reproducibly. An ideal entry-level system for both
inexperienced and occasional IEF users, the PHERO-iefoc is also versatile enough to
meet the needs of laboratories with increased throughput requirements.

Features include:

– A high-capacity focusing tray that accommodates up to twelve IPG strips
Adjustable ‘pick-and-place’ electrodes clip conveniently anywhere within the focusing ray to resolve IPG strips 7-24cm in length; colour-coded to prevent polarity reversal
– A cooling plate, manufactured from a special grade ceramic in a large 26x26cm surface area, facilitates effective heat dissipation and homogenous thermal control, particularly during high voltage IEF techniques
– An optional, but recommended recirculating chiller connects quickly and easily to the cooling plate via snap-lock connectors to maintain optimal operating temperatures for IPG strips (20°C) and precast gels (4°C)
– Rehydration tray allows convenient transfer of IPG strips to the focusing tray without time-consuming removal of residual rehydration buffer; also enables focusing tray to remain permanently in use for IEF to maximise throughput, and provides useful storage at -20°C for focused strips before second-dimension runs
– Electrode frame clips directly on to the cooling plate and includes adjustable electrodes to run horizontal precast IEF and PAGE gels

112100-001 PHERO-iefoc

1 x Tank body
1 x tank lid
1 x Cable set

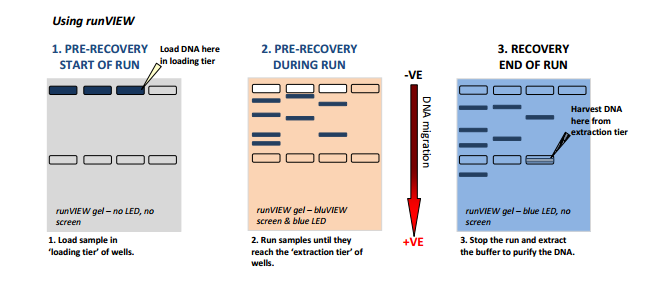

PHERO-sub 1515-RV


PHERO-sub 1515-RV is an innovative new system which can be used to maximise the efficiency of DNA recovery from EtBr and SYBR stained gels by minimising the number of steps involved in post-electrophoretic purification. PHERO-sub 1515-RV consists of a PHERO-sub 1515-E system with bluVIEW lid, containing an orange spectral emission filter within its viewing pane, and a base unit with integrated power supply and blue LED gel illuminator. Simple DNA recovery Using PHERO-sub 1515-RV is simple: first, cast a gel featuring two rows of wells with one matching pair of the preparatory combs supplied, before transferring the blue-light transparent gel tray to the PHERO-sub 1515-E tank located on the base unit. Add sufficient buffer just to cover the gel, and remove the combs to load the DNA samples into the upper row of wells (‘Loading’ tier). Replace the lid to connect the PHERO-sub 1515-E tank to the integrated power supply before applying the voltage and switching on the blue LED gel illuminator. Watch through the bluVIEW lid’s viewing pane as the samples migrate in real-time to the second row of wells (‘extraction’ tier). Once the DNA bands of interest enter the ‘extraction’ tier, simply stop the power supply, remove the lid and harvest the DNA by pipette

111400-101 PHERO-sub 1515-RV

1 x Gel Tray 150 x 70 mm, UV transparent
1 x Casting Dams ( 2 pcs.)
2 x Comb, 20 slots, 1.0 mm
Loading guides,Viewing Platforn, Cable set

111400-102 PHERO-sub 1515-RV

1 x Gel Tray 150 x 100 mm, UV transparent
1 x Casting Dams ( 2 pcs.)
2 x Comb, 20 slots, 1.0 mm
Loading guides,Viewing Platforn, Cable set

111400-103 PHERO-sub 1515-RV

1 x Gel Tray 150 x 70 mm, UV transparent
1 x Gel Tray 150 x 100 mm, UV transparent
1 x Gel Tray 150 x 150 mm, UV transparent
1 x Casting Dams ( 2 pcs.)
2 x Comb, 20 slots, 1.0 mm
Loading guides,Viewing Platforn, Cable set

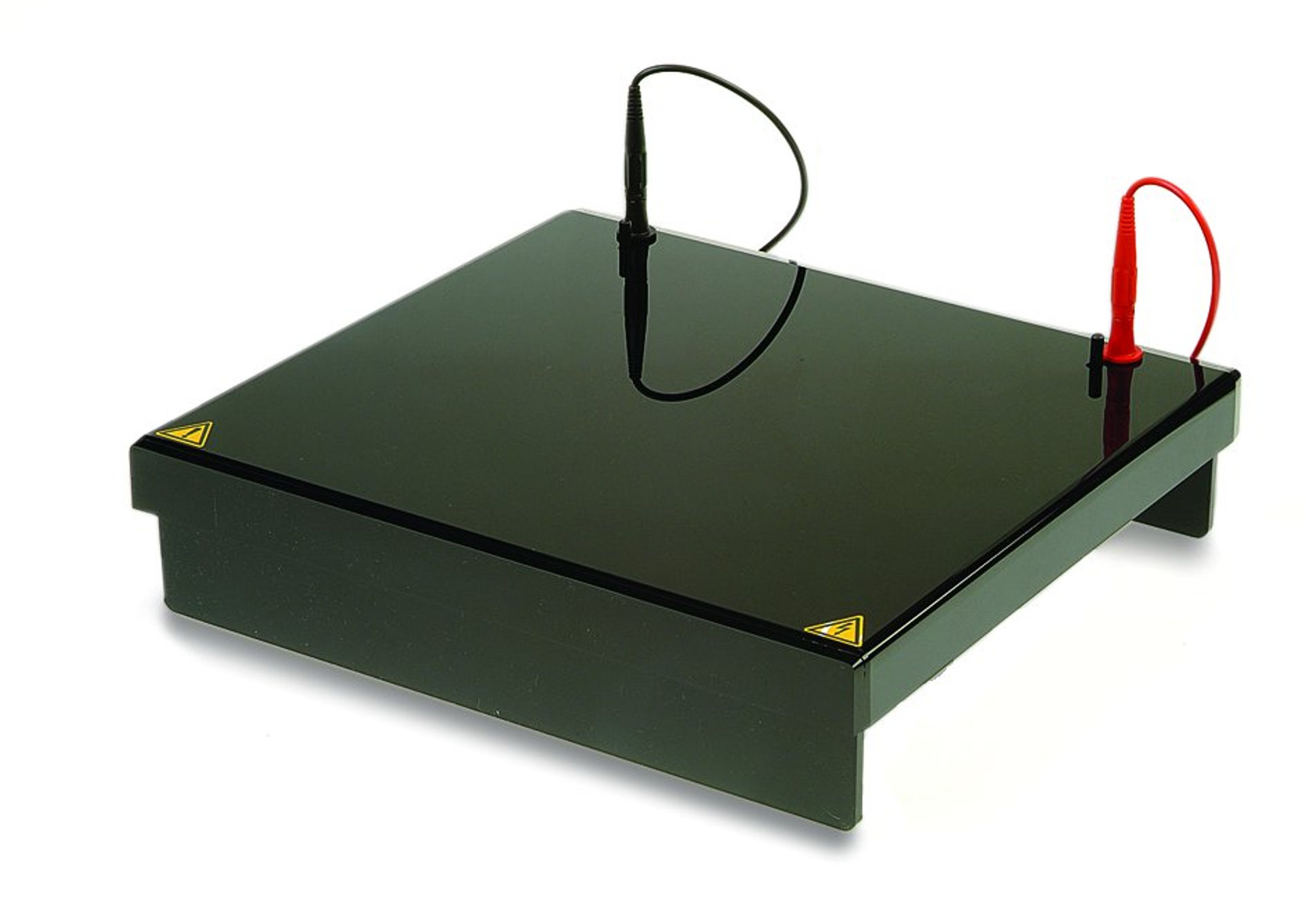

PHERO-comet essay


PHERO-Comet assay tanks are available in four slide formats to study single cell gel electrophoresis (SCGE), a technique made popular by drug toxicology and carcinogenesis studies for the detection and quantitation of DNA damage in cells. Each tank’s robust construction from ebony acrylic ensures that cells remain free of exposure to background light and DNA damage during electrophoresis, while a cooled central platform provides a convenient surface for slide preparation and control of slide temperature during the assay. Following electrophoresis DNA damage may be measured using Comet Assay scoring
software.

112210-001 PHERO-comet 10-E

Tank body with lid for 10 slides

112210-002 PHERO-comet 20-E

Tank body with lid for 20 slides

112210-003 PHERO-comet 30-E

Tank body with lid for 30 slides

112210-004 PHERO-comet 40-E

Tank body with lid for 40 slides
